A web clone of the Archi desktop tool — full ArchiMate 3.2, lossless .archimate round-trip, and jArchi-compatible scripting. No backend, no account, nothing leaves your browser.
Every element and relationship type, with Archi's official allowed-relationship matrix enforced live while you draw.
Views open as draggable tabs — split editors side-by-side, float or maximize groups, and the layout persists across sessions.
Custom SVG canvas with drag/resize/nesting, grid snapping, marquee selection, a magic connector, manual bendpoints, notes and groups.
Open and save native Archi files — verified against Archi's Archisurance example. Import/export Open Exchange XML and Archi CSV too.
$() selectors, model and view automation, a Monaco editor with API IntelliSense, and a script library. Each run is a single undo step.
Browser-local plugins add commands, panels and toolbar buttons — including a bundled ELK automatic-layout extension. Portable .archi-ext packages.
Archi Online runs entirely in your browser. Open the built-in Archisurance example, build your own model, or automate it with JavaScript.

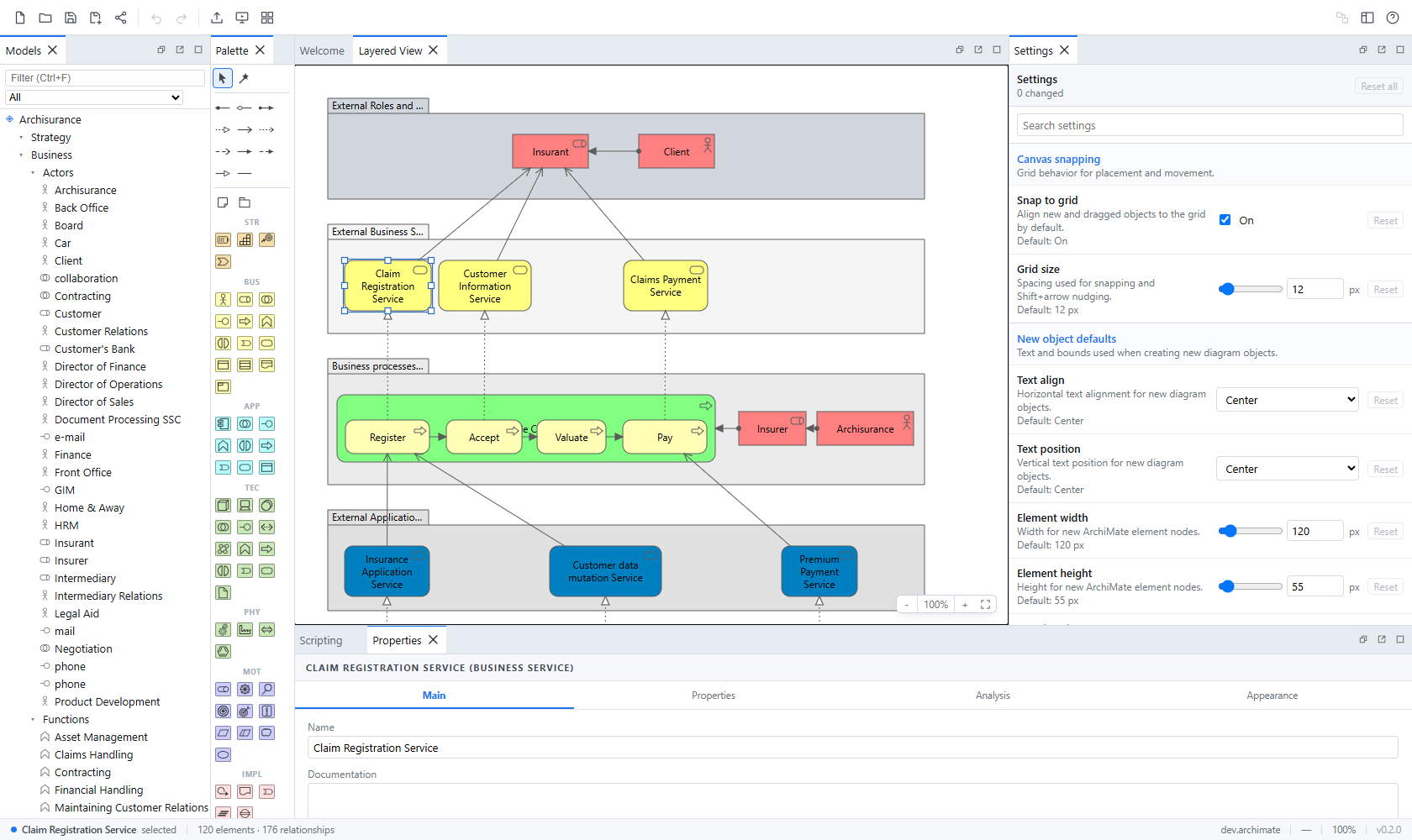

The IDE-style shell docks the model tree, palette, properties, and scripting panels around a custom SVG canvas. Everything is draggable, floatable, and persists across sessions.

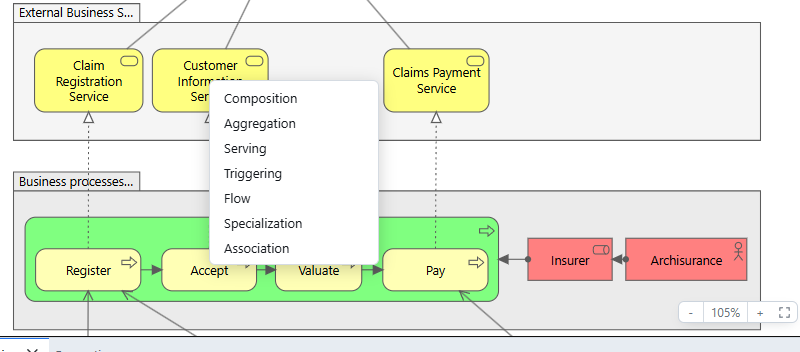

Relationship tools show live validity feedback from Archi's own allowed-relationship matrix, and the magic connector offers only the connections ArchiMate permits between two elements.

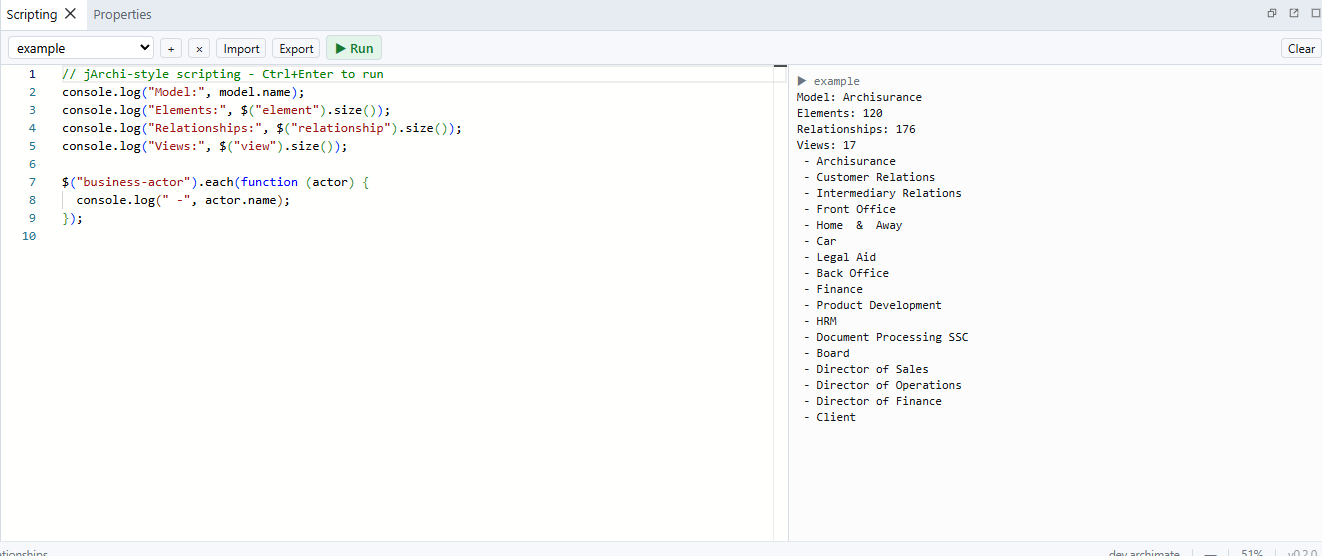

Scripts use the same jArchi-compatible API as desktop Archi. A whole script run collapses into one undo step.
var actor = model.createElement("business-actor", "Customer");
var svc = model.createElement("business-service", "Claims Service");
var rel = model.createRelationship("serving-relationship", "", svc, actor);
var view = model.createArchimateView("Overview");
var vs = view.add(svc, 40, 120, 140, 60);
var va = view.add(actor, 40, 20, 140, 60);
view.add(rel, vs, va);
view.openInUI();
| If you want to… | Read |
|---|---|
| Run the app and build your first model | Getting Started |
| Learn the workspace, canvas, and settings | User Guide |
| Model software architecture with C4 | C4 Modeling |
| Import, export, or present models | Import & Export |
| Exchange models with desktop Archi | Archi Compatibility |
| Automate your model with JavaScript | Scripting API |
| Build an extension | Extension API |
Your data stays local
Models are explicit .archimate files you open and save yourself. Autosave, settings, the script library, extensions, and the window layout live in your browser's IndexedDB for the current profile only. The app never uploads your model anywhere.
